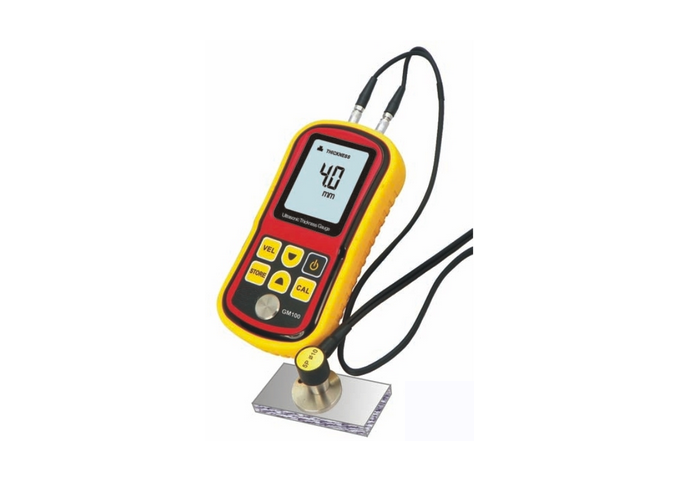

Ultrasonic Thickness Gauge GM100

Tel:0577-61775611
Fax:0577-61715611
Thumbnail 1

Product Details

*Measuring range: 1.2~220mm (Steel)

*Accuracy: ±(1%H+0.1) mm

*Resolution: 0.1mm

*Sound velocity range: 1000~9999m/s

*Working frequency: 5MHz

*Minimum limit for tube measuring: Φ20*3mm (Steel)

*Auto calibration to assure the accuracy

*Auto linear compensation: this advanced software program enhances the precision by correcting the non-linear accuracy of transducer.

*Data store/ Data recall/ Data delete function

*Sound velocity measurement

*Low battery indication

*Auto power off

*LCD backlight display
*Warranty: 12months

*Packing Method: Gift box + PP box

*Power supply: 3pcs*1.5V AAA alkaline batteries

*Weight: 210g

*Dimension: 70*145*28mm
