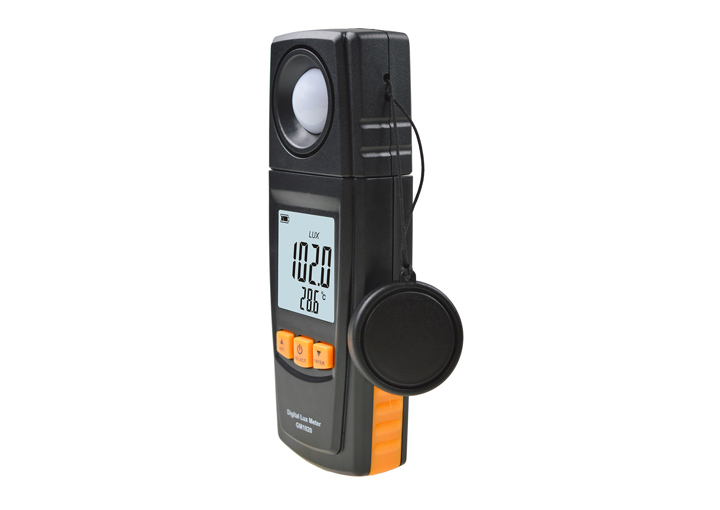

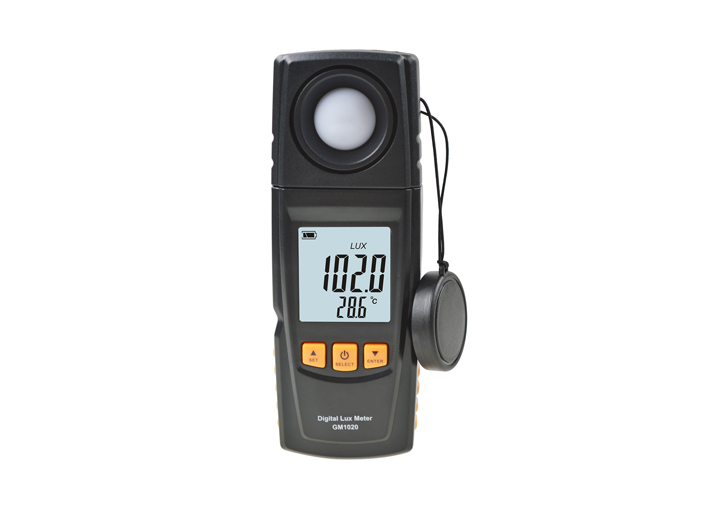

Digital Lux Meter GM1020

Tel:0577-61775611
Fax:0577-61715611

Product Details

*Measurable Objects: Illuminance and temperature ,illuminance

difference,naximum and minimum.

Illuminance and temperature,imtegrating illuminance and

integrating time,and average integrating illuminance

*Photoelectric element: Silicon diode

*Thermal Probe: NTC Thermistor

*Illuminance Measuring Range:

Total measuring range: 0~200000Lux

*Lux into four ranges:

x1 0~199.9Lux

x10 200~1999.9Lux

x100 2000~19999.9Lux

x1000 20000~199999.9Lux

*Temperature measuring range: 0~40

*Temperature accuracy:±1.0

*Illuminance  accuracy:

 ±3%rdg(below 10000Lux)

 ±4%rdg(above 10000Lux)

Units of illuminance and temperature:

Four combinations of units are available.lux/  lux/℉  FC/℃   FC/

LCD Display up date frequency:Twice per second

Operating Temperature/humidity:0~40 10~90%RH

Storage temperature/humidity:-20~50℃ 10~90%RH

Power supply: Two AAA batteries

Battery life:10 hours(continuous operation with a USB connection)

Auto shutdown: You can set an auto shutdown timer through LuxLAB
